QUART DVTap

IAEA-EFOMP-ESTRO CBCT and CT Image Quality Test Phantom

The QUART DVTap phantom is designed to be used as a universal tool for 3D imaging equipment including CT applications.

The phantom (combined with QUART's CTtec software) has been endorsed by IAEA, EFOMP and ESTRO as a comprehensive solution for time-efficient CT and CBCT QA procedures.

Only one exposure required to create 3D data set containing all required parameters to evaluate image quality. Automated evaluation through unique QUART QA/QC software.Phantom can be applied for field sizes from 4x4cm to large fields-of-view (FOV). A universal holder or customised phantom holders available for easy and reproducible positioning.

Technical specifications

  • SPATIAL RESOLUTION: Line spread function
  • RESOLUTION: Z-Resolution
  • STANDARD TEST OBJECTS: PMMA / Air / PVC
  • MATERIAL EQUIVALENTS: Free Air / Soft tissue / Bone
  • POSTIONING TOOLS: Linear (top side) / Selective markers
  • SIZE: Ø 16 cm, height: 15 cm
  • SCATTER RADIATION MODULES: 1x 6 cm / 1x 5 cm

Parameter

  • Nyquist Frequency (NF)
  • Contrast-to-Noise Ratio (CNR)
  • Homogeneity / Image Uniformity
  • Z-Resolution

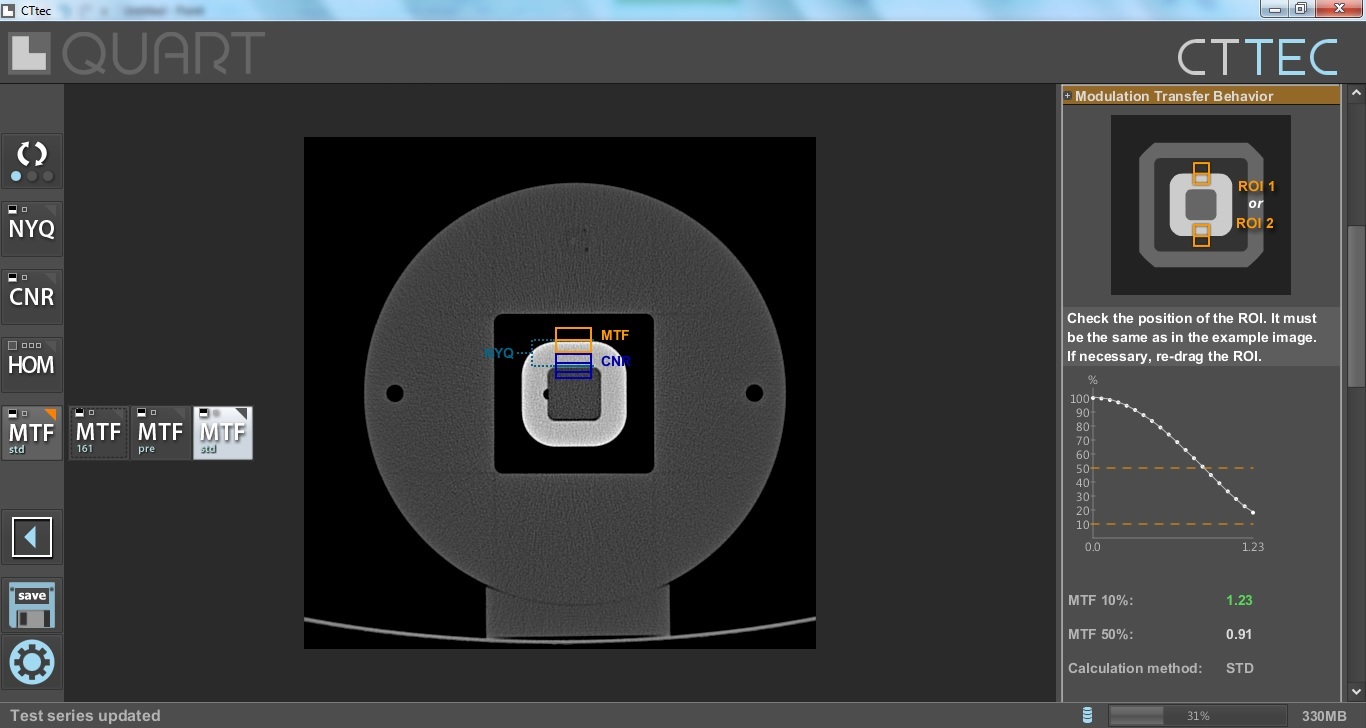

  • Modulation Transfer Function
  • Artefacts, Image Flaws
  • Figure of Merit

EFOMP working group, Quality control in cone-beam computed tomography (CBCT) EFOMP-ESTRO-IAEA protocol (summary report)Physica Medica, Volume 39, July 2017, Pages 67-72.

LINK: http://www.sciencedirect.com/science/article/pii/S112017971730
