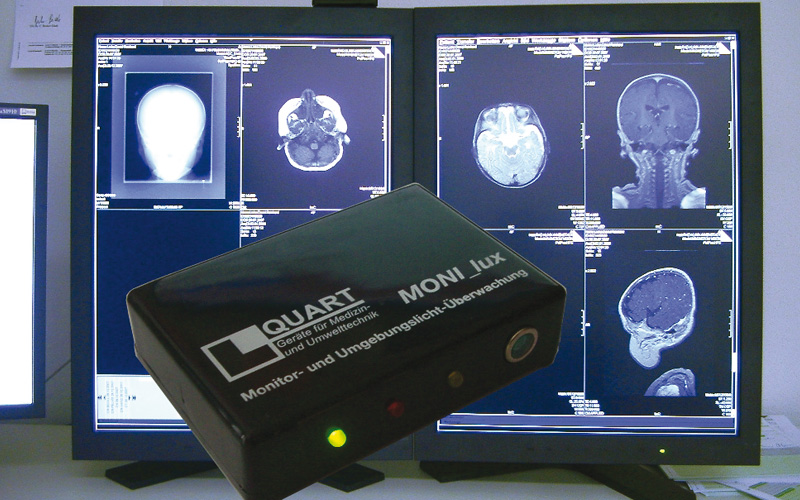

The QUART MONI_lux automatically checks if the ambient light is not too bright to assure proper viewing conditions. For this purpose it has been factory calibrated to signal the appropriate (green) range between 20 – 50 lux.
The device also signals when the room light is too dark for critical image assessment (yellow). The reason for this is that in too dark environments, light areas in an x-ray image tend to glare when viewed on a viewbox or on a digital monitor.
Its power supply can be established from an available USB port at any workstation.
The QUART MONI_lux complies with IEC 61223-2-5 and DIN 6856-1.
- Yellow < 20 lux
- Green 20 – 50 lux
- Red > 50 lx (blinking)
- For light emitting devices, viewboxes or digital monitors
- PLACEMENT: On top of viewing device (to be flush with monitor front)
- SIZE: 7.5 x 5.5 x 1.5 cm (W x L x H)
- WEIGHT: 50 g
- POWER: USB direct
