didoEASY R / didoEASY+ R / didoEASY++ R

Dosemeter Series for X-Ray Service and QA in R&F and Dental

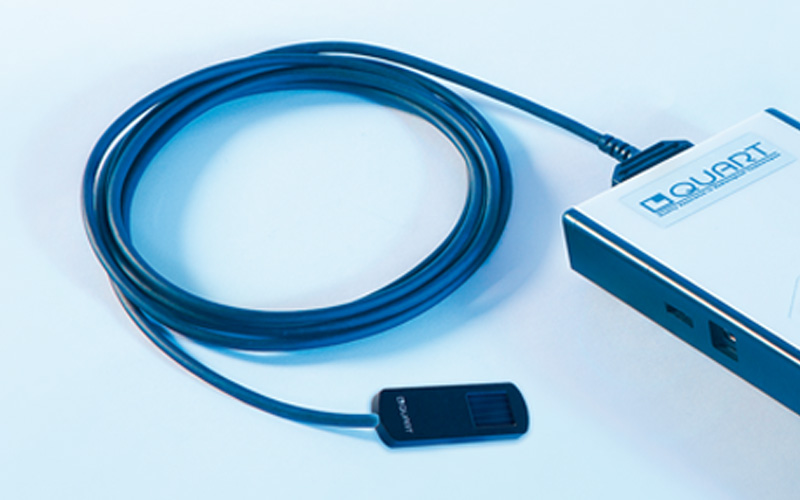

QUART didoEASY R
Art. 11115
Basic Configuration
QUART didoEASY+ R
Art. 11115+
Added kV Measurement
QUART didoEASY++ R
Art. 11115++
Added kV and Direct-HVL Measurement



The QUART didoEASY meters are designed for users who emphasise high precision in dosimetric applications but do not require the performance of a full-range dosemeter package.

QUART didoEASY meters can be used to measure parameters which are essential for service and quality assurance operations at x-ray equipment such as dose, dose rate and time. Of course, as with all QUART meters – with maximum precision.

- kVp and PPV measurement available in the QUART didoEASY+ R version.

- Direct-HVL and kVp / PPV measurement available in the QUART didoEASY++ R version.

Since the meters do not require any pre-setting procedure, measurement results are acquired very quickly:

1. Position the detector and switch on the didoEASY meter...

2. Set the x-ray equipment to the desired parameters...

3. Expose... - and simply read all measurement information from the meter‘s display. The QUART didoEASY meters automatically compensate all major medical x-ray beam qualities. No further corrections or compensations are required.

Traditionally, the detector of the QUART didoEASY meter series also measures the integrated dose-width product (DWP) at dental panoramic equipment.* A feature that provides real added value for QUART users.

Technical specifications

General Features
  • Exposures: one to acquire all parameters
  • Mode: auto-start, auto-stop & auto-reset
  • Power supply: Rechargeable Li Ion accu
  • Battery time: approx. 120 hrs. until recharge required
  • Base size: 17x7x4.5cm (LxWxH)
  • Base weight: 200 g
  • Detector size: 6.0x1.8x0.5cm (LxWxH)
  • Detector weight: negligible (!)
Specifications
  • didoEASY R    basic configuration

  • Dose: 0.2 µGy - 999 Gy (Uncertainty: ±5% @ 40-160 kV / Resolution: 0.01 nGy)
  • DLP*: 0.2 µGy*cm - 999 Gy*cm (Uncertainty: ±5% @ 40-160 kV / Resolution: 0.01 nGy*cm)
  • Dose Rate: 0.3 µGy/s - 1 Gy/s (Uncertainty: ±5% over full range / Resolution: 0.1 nGy/s)
  • Time: 0.5 ms - 300 s (Uncertainty: ± 0,5% / Resolution: 0.1 ms)
  • Pulses: 1 - 9999 (Uncertainty: ± 1 pulse)
  • Pulse Rate: 0.1 - 250 pulses/s (Uncertainty: ± 0.05 pulses/s)



  • didoEASY+  R   - features added kV measurement

  • Dose: 0.2 µGy - 999 Gy (Uncertainty: ±5% @ 40-160 kV / Resolution: 0.01 nGy)
  • DLP*: 0.2 µGy*cm - 999 Gy*cm (Uncertainty: ±5% @ 40-160 kV / Resolution: 0.01 nGy*cm)
  • Dose Rate: 0.3 µGy/s - 1 Gy/s (Uncertainty: ±5% over full range / Resolution: 0.1 nGy/s)
  • Time: 0.5 ms - 300 s (Uncertainty: ± 0,5% / Resolution: 0.1 ms)
  • Pulses: 1 - 9999 (Uncertainty: ± 1 pulse)
  • Pulse Rate: 0.1 - 250 pulses/s (Uncertainty: ± 0.05 pulses/s)
  • kVp / PPV: 50 – 130 kV (Uncertainty: ±5% at calibrated reference points / Resolution: 0.1 kV); Exposure conditions: HVL 1.4 – 7.0 mm Al eq.



  • didoEASY++  R   - features added kV and direct-HVL measurement

  • Dose: 0.2 µGy - 999 Gy (Uncertainty: ±5% @ 40-160 kV / Resolution: 0.01 nGy)
  • DLP*: 0.2 µGy*cm - 999 Gy*cm (Uncertainty: ±5% @ 40-160 kV / Resolution: 0.01 nGy*cm)
  • Dose Rate: 0.3 µGy/s - 1 Gy/s (Uncertainty: ±5% over full range / Resolution: 0.1 nGy/s)
  • Time: 0.5 ms - 300 s (Uncertainty: ± 0,5% / Resolution: 0.1 ms)
  • Pulses: 1 - 9999 (Uncertainty: ± 1 pulse)
  • Pulse Rate: 0.1 - 250 pulses/s (Uncertainty: ± 0.05 pulses/s)
  • kVp / PPV: 50 – 130 kV (Uncertainty: ±5% at calibrated reference points / Resolution: 0.1 kV); Exposure conditions:  HVL 1.4 – 7.0 mm Al eq.
  • Direct-HVL: 0.1 – 11 mm Al (HVL output, Uncertainty: ±8% / Resolution: 0.1 mm Al); Internal filtration 0.1 – 12.5 mm Al equivalent; 40-130 kV range

* S A Mitchell and C J Martin, Comparison of ionisation chamber and semiconductor detector devices for measurement of the dose–width product for panoramic dental units, J. Radiol. Prot. 33 321 (2013).
